Piranha Racewerks Return Fuel System Kit

The Piranha Racewerks is the most robust and cheapest option compared to our competitors' options. We offer everything you need to complete a return fuel system on your 2008-2016 2.0T. The kit can be modified to work with 3.8 non-GDI engines.

Kit comes with the following if selected in the options (you must select to receive specific parts below marked as optional)

Piranha Racewerks Fuel feed line and fittings (optional)

Piranha Racewerks End of Fuel Rail return fitting

End of Fuel rail to Aeromotive Regulator hose and -6AN fittings

Aeromotive A1000-6 Pressure regulator in the red top silver bottom version and -6AN inlet, outlet, inlet plug fittings (optional)

Regulator to fuel pump assembly hose and -6AN fittings

Piranha Racewerks Intank FPR regulator delete

We Build Pump Assembly will include customized fuel pump assembly and Walbro Universal 450lph In-Tank Fuel Pump E85 version, if you order just the parts and we do not assemble then you must buy the fuel pump separately from us or elsewhere

Intank Pump Assembly parts include fuel pump filter, gates submersible hoses, bulkhead, bulkhead plastic washer, bulkhead nut, -6AN 3/8 barb end fittings, PRW FPR regulator delete, Fuel safe zip tie, two fuel submersible electrical connectors, and four hose clamps (core deposit of $150)(optional) see red notes below *, **

*Core deposit is $150.00 USD; you will receive your core deposit back if you send in your complete unit within 15 days of getting your kit from us, you are responsible for shipping your core back to us.

**We can only accept fuel assemblies from 2008-2012 2.0T (part number on top of assembly 31110-2M500); all other assemblies cannot be returned as core returns, we will not return any wrong pump assemblies so if you send us a different part number it will be discarded not returned, unless you pay for return shipping of the wrong part back to you.

Disclaimer:

Build Pump Assembly (Deposit required)
You pay us a deposit ($150) in the case that you don't return your fuel pump assembly to us or you return a pump assembly not from a 2008-2012 with part #31110-2M500

Build Pump Assembly

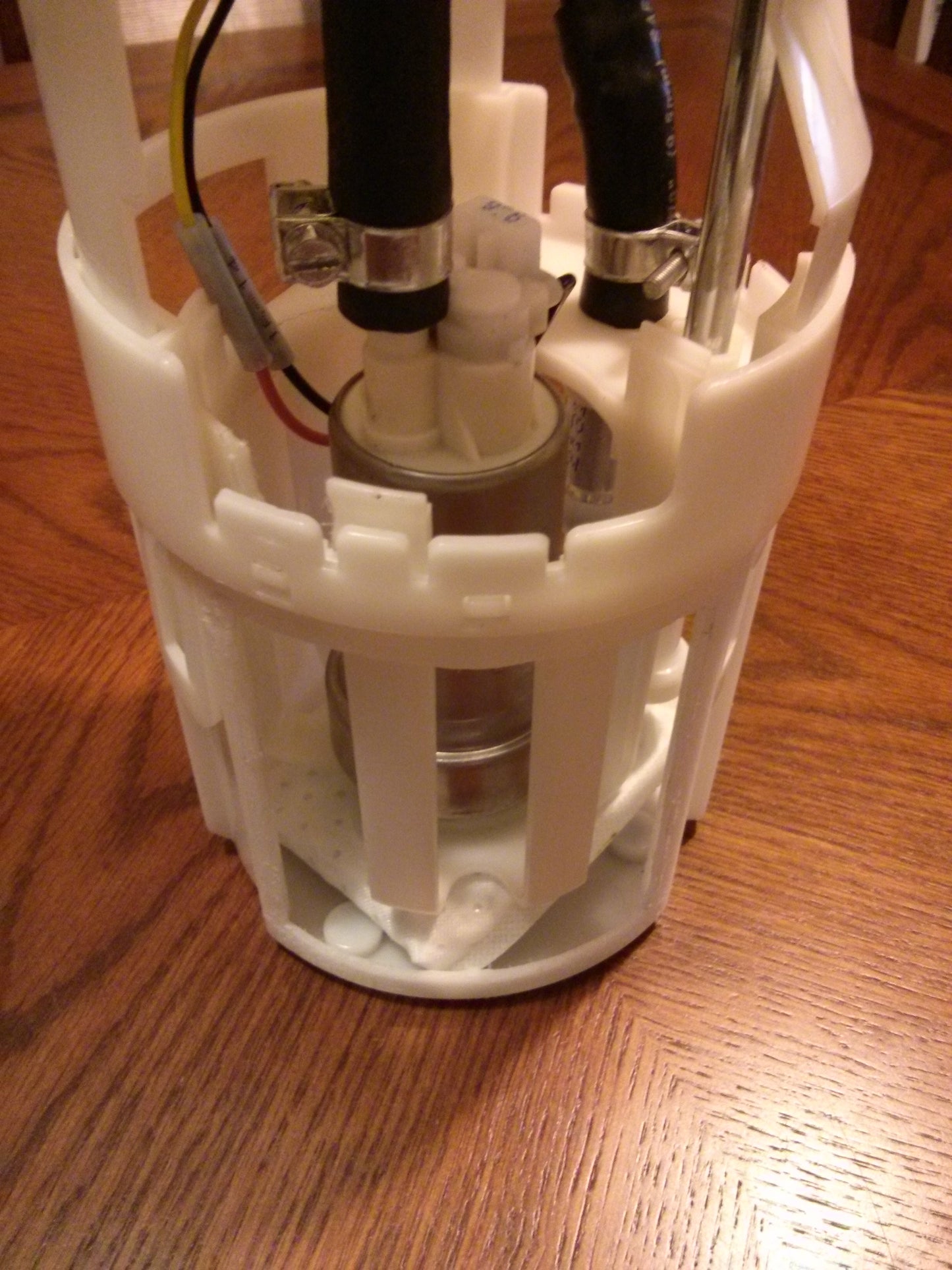

We will build the entire pump assembly with all clamps, install the fuel pump, and install a bulkhead for the fuel return line. Also, the in-tank fuel pressure regulator delete(part made by us) is installed; please see the photo for what the white pump assembly looks like after we are done with the assembly. This process takes us around 3 hours per assembly and is not quickly or easily done by the average customer as special bits and tools are required to get a factory-like assembly.

If you select not to have us build the assembly, we will only include the parts needed for you to assemble the intank assembly minus the fuel pump and filter. You will be responsible for machining the factory fuel pump assembly, installing the parts, and drilling and installing the bulkhead, which, if not done correctly with the right parts, will leak fuel and potentially cause a fire.

You will be responsible for building your complete kit without our instructions. You understand and accept this responsibility and agree not to publicly blame us for any and all issues related to your improper kit building.
