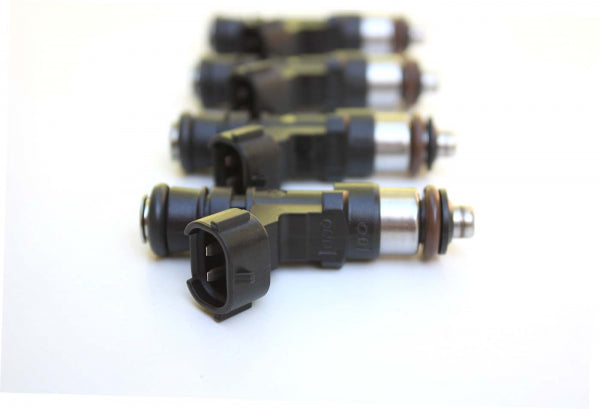

Piranha Racewerks 550cc Fuel Injectors

Piranha Racewerks 550cc Fuel Injectors

Regular price $430.00 USD
Regular price Sale price $430.00 USD
Sale Sold out
Size Injectors in cc

PROPRIETARY FUEL INJECTORS, THAT ARE CUSTOM Manufactured exclusively for the Genesis Coupe 2.0t
Direct fit, OEM fit - No adapters or additional wiring needed
Custom-manufactured in small-quantity batches to achieve the highest quality product
Our injectors are all-fuels rated; including gasoline (MTBE), and E85.
The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into flow-matched sets ready for shipping.

FLOW CHART:
Each set is sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.

As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.

Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.

The tests were performed at varying temperatures to achieve realistic results.

Linear tuning with excellent low-end, and idle rpm.

FiveOMotorsport Fuel Injection is the only fuel injector seller that can claim this level of technology thus why Piranha Racewerks teamed up with FiveOMotorsport to be the first to bring you these high quality fuel injectors starting back in 2010.

SPECIAL NOTE TO OUR E85 USERS:
Ethanol based fuels tend to "dry" the fuel injector outlet orifices.
Users/tuners should be made aware that this may cause a "sticking" problem in fuel injectors that sit idle for a prolonged period of time.
It is suggested for applications running high ethanol content based fuels, to periodically incorporate into their fuel-system-maintenance a drop of light petroleum-based lubricant for each fuel injector.
This is also considered to be good maintenance, but not essential, for stainless steel based fuel injectors.
It should also be noted that for optimum performance the entire fuel system should be made up of ethanol approved materials including all fuel lines/fuel pump/fuel filter, etc.

Injector type: EV14 composite plastic, saturated
Electrical connector: Sumitomo
Overall length: 65 mm
O-ring to O-ring on Center: 52 mm
Diameter: 18 mm
Tested Resistance: 12.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 bar)
